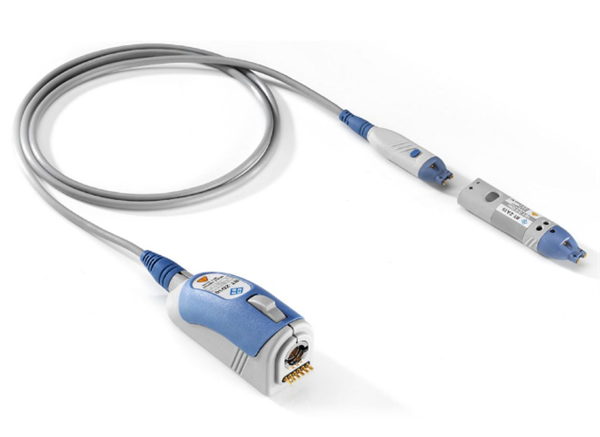

R&S®RT-ZD40 主動式差動探棒

產品編號:R&S®RT-ZD40

品牌:Rohde & Schwarz (羅德史瓦茲)

►頻寬 (Bandwidth): 4.5 GHz (或更高，通常涵蓋 200 MHz-6 GHz 範圍)。

►最大差分輸入電壓: ±5V (可量測差分電壓)。

►輸入阻抗: 高輸入阻抗 (通常 >1 MΩ)。

►輸入電容: 低輸入電容 (小於 1 pF)。

與我們聯絡

  • 產品說明
型號 頻寬 最大電壓 衰減因子 輸入阻抗
R&S®RT-ZD10 1.0 GHz Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation) 10:1 1 MΩ || 0.6 pF
R&S®RT-ZD20 1.5 GHz Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation) 10:1 1 MΩ || 0.6 pF
R&S®RT-ZD30 3.0 GHz Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation) 10:1 1 MΩ || 0.6 pF
R&S®RT-ZD40 4.5 GHz Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation) 10:1 1 MΩ || 0.4 pF
