產品資訊  /  Rohde & Schwarz (羅德史瓦茲)  /  被動式單端探棒

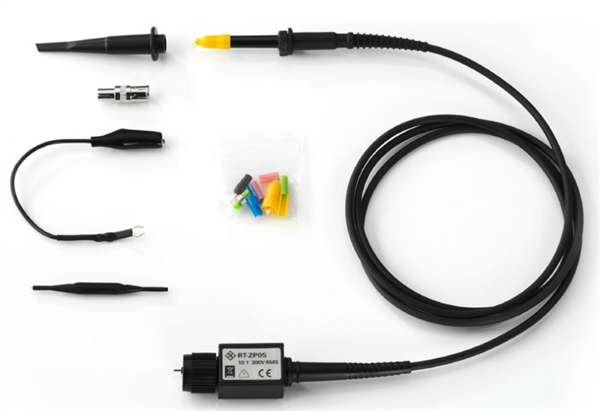

R&S®RT-ZP05S 被動式單端探棒

產品編號:R&S®RT-ZP05S

品牌:Rohde & Schwarz (羅德史瓦茲)

►頻寬：500 MHz
►最大電壓：300 V (RMS)
►衰減因子：10:1
►輸入阻抗：​10 MΩ || 10 pF

與我們聯絡

  • 產品說明
型號 頻寬 最大電壓 衰減因子 輸入阻抗
R&S®RT-ZP1X 38 MHz 55 V (RMS) (CAT II) 1:1 1 MΩ || 39 pF
R&S®RT-ZP03S 300 MHz 400 V (RMS)
55 V (RMS)		 10:1 10 MΩ || 12 pF
R&S®RT-ZP05S 500 MHz 300 V (RMS) 10:1 10 MΩ || 10 pF
R&S®RT-ZP10 500 MHz 400 V (RMS)
300 V (RMS) (CAT II)		 10:1 10 MΩ || 9.5 pF
R&S®RT-ZP11 700 MHz 400 V (RMS) 300 V (RMS) (CAT II) 10:1 10 MΩ || 9.5 pF
R&S®RT-ZI10 500 MHz 600 V (RMS) (CAT IV)
1000 V (RMS) (CAT III)		 10:1 10 MΩ || 12 pF
R&S®RT-ZI10C 500 MHz 300 V (RMS) (CAT III) 10:1 10 MΩ || 11 pF
R&S®RT-ZI11 500 MHz 600 V (RMS) (CAT IV)
1000 V (RMS) CAT III
3540 V (RMS) (CAT 0)		 100:1 100 MΩ || 4.6 pF
R&S®RT-ZPMMCX 700 MHz 30 V (RMS) 25:1 14.9 MΩ ± 1 %  || < 4pF
